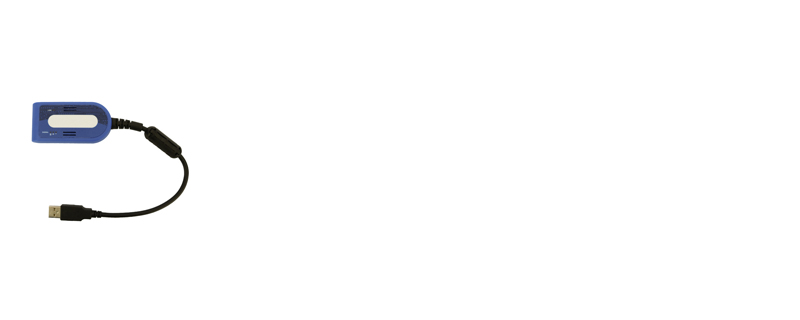

The GSM Modem w/USB Connection allows you to send text message alerts over any GSM/GPRS/EDGE network from AVTECH’s Device ManageR software (with Dial Out Plugin Bundle).
AVTECH’s GSM Modem allows you to send text message alerts over any GSM/GPRS/EDGE network from AVTECH’s Device ManageR software (with Dial Out Plugin Bundle). This compact 3G/2G modem connects directly to Device ManageR’s host system by a USB 2.0 connector, which also provides power to the modem. It requires a SIM card (mini-SIM), which you may obtain from your cellular service provider.
The GSM modem is easy to install, plug-and-play, quad-band modem is controlled via AT commands and programmable for setting and AT command customization. Built for AVTECH by Multi-Tech, this modem features complete IP connectivity and a robust compact casing, ideal for industrial environments. This is our recommended and preferred modem for use with Device ManageR and requires installation of the Dial Out Bundle of plugins. This modem is the best we've found to connect and alert via cellular. It requires that you purchase a data card or SIM from your service providers.
Features & Specifications For GSM Modem w/USB
|GSM Modem w/USB Connect|
|Air Interface||GSM / GPRS / EDGE|
|Frequency Bands||3G: 800/850/900/AWS 1700/1900/2100|
|Frequency Bands (2G)||2G: 850/900/1800/1900|
|Dimensions (L x W x H)||3.1" x 1.58" x 0.74"|
|Regulatory||FCC Part 15 Class B, IC, R&TTE|
|Safety||UL60950-1, cUL60950-1, IEC60950-1|
|Network||AT&T, T-Mobile, Rogers, EU Carriers|
|Network (Pending)||Bell, Telus|
|CPU Core Frequency Performance||104MHz (26MHz)|
|CPU User MIPS Available Performance||87MIPS|
|Compatible Products||Room Alert 32W, 32E, 26W, 26WO, 24E, 11E, 7E, 4E, TemPageR 4E, & 3E. All via Device ManageR Host System.|
The GSM Modem w/USB Connect Includes:
- (1) Modem - GSM w/USB Connect (External, UL, RoHS)
- (1) 8˝ USB Connection Cable
- (1) Internal Antenna
- Installation Note & Instruction Sheet
