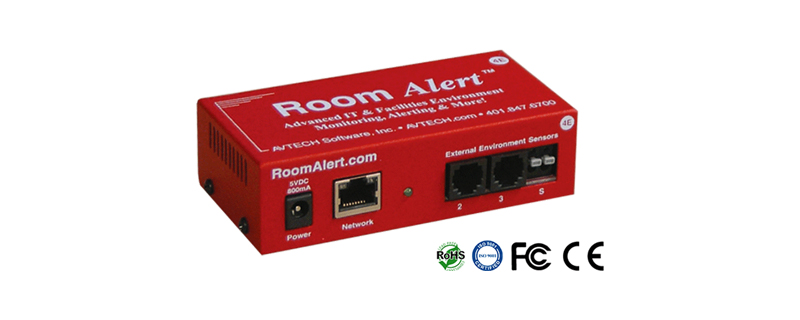

Room Alert 4E is one of AVTECH's advanced hardware solution!

Room Alert 4E is one of AVTECH's hardware solutions for "IT & Facilities Environment Monitoring, Alerting & More". It is designed specifically to assist with computer room temperature and environment monitoring in multiple locations simultaneously. Room Alert 4E allows alert notifications via email, email-to-SMS, SNMP and more to devices like computers, mobile phones and mobile devices. Room Alert 4E offers an easy to use web browser interface for settings changes and viewing real-time temperature and sensor status from anywhere. Mount the Room Alert 4E in a server rack with the 1U 19" rack mount kit (assembled) or use without the rack mount in other environments where monitoring physical conditions is desired.

It Includes ALL of the following:

  • The Room Alert 4E package allows real-time temperature and environment monitoring, logging, one click data export, advanced alerting, Fahrenheit/Celsius, high/low watermarks, temperature values in alerts, custom alert text and more.
  • Easy Ethernet ‘Plug and Play' setup for remote temperature and environment monitoring from anywhere.
  • Includes 2 Digital Temperature Sensors (1 internal, 1 external, with 1 open port).
  • Use with AVTECH's sensors for Digital Temperature, Digital Outdoor Temperature, Digital Fluid Temperature or Digital Temperature & Humidity.
  • Includes 1 Switch Sensor Channel for connection of an external switch sensor such as power, flood, smoke, motion, air flow, room entry, panic buttons or others.
  • Includes 1 port for connection of AVTECH's Light Tower w/Audio or Relay Switch sensor.
  • Includes the ability to ping up to 8 devices on the network and alarm if they do not respond.
  • Includes PUSH Technology and SNMP Trap & Query compatibilty.
  • Advanced alerting by email, email-to-SMS, SNMP, web page update & more.
  • Use the built-in web server, bundled Device ManageR software, or any SNMP application to monitor.
  • Sensor data is available in JSON format, making it easy to integrate into other applications.
  • Use Room Alert 4E with or without a host system. That's right... No PC Required!

The Room Alert 4E package includes a license for Device ManageR

The Room Alert 4E package includes a license for AVTECH's powerful Device ManageR application software, an advanced solution for the discovery, management, logging, graphing, advanced alerting and more of AVTECH's IT & Facilities Environment Monitoring hardware. It runs as a Windows Service and automatically discovers AVTECH's hardware units or Axis IP cameras across the network, allowing users to immediately be informed when environmental thresholds are passed. Device ManageR's web browser interface allows users to view and manage any or all units on their network, graph and log sensor data in real-time or over a specified date range, send out alerts if an issue or event arises, and much more. Plugins are optionally available for Windows/Linux shutdown, reboot and/or log off; dial out via GSM, text or voice modems; advanced reporting, and more. New "dashboard" capabilities allow users to create the interface they desire, for their unique needs.

A Super Bundle of plugins is also available and includes all bundles at a low price so all functionality is available. As new plugins are added to these bundles, they are included at no charge for immediate download. There is no annual service fee for AVTECH's software, download access, new versions and technical support if support is maintained on AVTECH's hardware monitors.

GoToMyDevices is AVTECH's new, state-of-the-art cloud monitoring service designed for new and existing Room Alert users. It provides the ability to easily monitor temperature and environmental conditions from anywhere, at anytime, via the web. Regardless of your web interface of choice, the look, function, and entire user experience is always the same. Use GoToMyDevices to view all connected sensor and monitor devices without the need to install software, configure an email server, or worry about network concerns. Users can monitor, alert, log, graph, view, report, map, manage and protect their facilities with both ease and confidence.

Easy Monitoring

Room Alert 4E can easily monitor environments such as phone or wiring closets, critical rack cabinets and larger computer rooms or data centers and more. Since Room Alert 4E is connected via Ethernet and does not require a host PC for operation, it can be located anywhere an Ethernet connection is available. Power over Ethernet (PoE) is possible with AVTECH's PoE Splitter (5V). Sensors can be run inside a rack cabinet, air vent, sub floor or other location. Room Alert 4E will help to protect valuable IT equipment and minimize downtime if a disaster should occur. It can also be used to manage utility use by monitoring power consumption, allowing possibilities to reduce energy costs.

Features & Specifications For Room Alert 4E

Specifications

Hardware
ID Box Model / Rack ModelRA4EW / RA4ER
ID Box Dimensions1.25" H x 2.25" D x 4.56" W
ID Box Weight1 lbs, 8.9 oz
ID Box ColorRed
Rack Mounted ModelIncluded (Standard)
Rack Mounted Size (1U 19")1.75" H x 3.75" D x 19" W
Rack Mounted Weight2 lb, 3.3 oz
Rack Mounted ColorRed
Rack Mounting Kit Available SeparatelyIncluded
Wall Mounting Kit Available SeparatelyOptional, €12
Ceiling Mounting Kit Available SeparatelyOptional, €14
Operating Temperature-40 to 185 °F (-40 to 85 °C)
Power Source5 VDC 2A Adapter (Included)
Power Over Ethernet (PoE)Yes (IEEE 802.3af)
Power Compatibility110/240 VAC, 50/60 Hz, RoHS
Power On/Off SwitchNo
Built-In Uninterruptible Power Supply (UPS)No
Mini UPS (MUPS) Compatible, Upgrade CostYes, €95
MUPS Status Indicator (Red Battery / Green AC)No
PoE & WLAN Activity Indicators (LED)No
International Power Adapter ProvidedSpecific For Destination Country
Reset Button (Restore To Default Settings)Yes
0-5V Analog Sensor InputYes, 1 Port
External Relay OutputsYes, 1 Port (0.3A@125VAC / 1A@24VDC)
External Light Tower & Relay Adapter Connection PortYes, 1 Port
External Light Tower, Cable & Mounting BracketOptional
External Light Tower & Power Adapter PortNo
External Light Tower & Power Adapter Port1 (via Digital Port)
Ethernet Port & SpeedRJ-45, 10/100 Mbps BaseTX
Ethernet Link & Activity IndicatorYes
Ethernet Cable (Included)10', Red, Snagless

Web Server (Built-In)
Standalone Capability (No PC Required)Yes
Built-In Web ServerYes
Web Browser InterfaceYes
Password ProtectedYes
Built-In Web Server Alert MethodsEmail, SMS, SNMP, Web
Built-In Web Server Alert RecipientsIndividuals, Groups, Hierarchies
Built-In Ping CapabilityNo
Graphic Sensor Status DisplaysYes
Real-Time Digital TemperatureYes
Temperature Values DisplayedYes, Fahrenheit or Celsius
Temperature High / Low Watermarks DisplayedYes
Real-Time Digital HumidityYes
Humidity Values DisplayedYes, % Relative Humidity
Humidity High / Low Watermarks DisplayedYes
Heat Index Calculated & DisplayedYes, Fahrenheit or Celsius
Real-Time Values In AlertsYes
Easy Click Firmware UpdatesYes
SNMP Enabled (Trap & Query)Yes
Compatible With SNMP Monitoring ApplicationsYes
Real-Time Logging Of Sensor Data Via...Device ManageR & SNMP
Real-Time Sensor Data FeedsHTTP, SNMP, JSON, AJAX
MIB Files AvailableYes, Download

Digital Sensors (Internal & External)
Digital Sensor CompatibilityTemperature, Outdoor Temperature, Fluid Temperature, Temperature & Humidity
Built-In Digital Sensors (Internal)Temperature
Digital Sensor Ports (External)2 RJ-11
Digital Sensor Capacity (Total)3
Digital Temperature Sensors (Included)0 External
Digital Temperature Sensor Range-67 to 257 °F (-55 to 125 °C)
Digital Temperature Sensor Accuracy+ / - 0.125
Digital Humidity Sensors (Included)1 Internal, 0 External
Digital Humidity Sensor Range5% to 95% RH
Digital Humidity Sensor Accuracy+ / - 3.5%
Digital Sensor Cable Type & Standard LengthRJ-11 Cable, 25'
Maximum Digital Sensor Cable LengthApproximately 100'
Digital Sensor Alert Indicator (LED)No

Switch Sensors (Internal & External)
Switch Sensor Capacity1, Unlimited
Built-In Switch Sensors (Internal)None
Power SensorOptional
Mini UPS & Power SensorOptional, €95
Flood SensorOptional
Smoke SensorOptional
IP Camera With Motion SensorOptional
Air Flow SensorOptional
Room Entry SensorOptional
Panic ButtonOptional
Other AVTECH Sensors (See Website)Optional
Dry Contacts (On Other Sensors or Devices)Air Conditioner, UPS, Cooler, Etc.
Allows Multiple Sensors On Single ChannelYes, Via Chain or Spoke
Switch Sensor Cable Type & Standard Length2 Wire Cable, 25'
Maximum Switch Sensor Cable LengthApproximately 900'
Switch Sensor Alert Indicator (LED)No

Wireless Sensor Hubs
WiSH Sensor Compatible (Powered or Battery)No
WiSH Units Included-
WiSH Communication Range (Distance)-
WiSPR Sensor CompatibleNo
WiSPR Units Included-
WiSPR Communication Range (Distance)-
Maximum WiSH/WiSPR Capacity (Quantity)-
WiSH Signal Strength Indicators (LED)-
Wireless Sensor Alert Indicator-

Bundled Device ManageR Software
Device ManageR Software LicenseFull Use License Included

Package Includes

The Room Alert 4E Package Includes:

- (1) Room Alert 4E ID Box w/Ethernet

- (1) Rack Mount Kit (1U 19")

- (1) Built-in Digital Temperature Sensor

- (1) External Digital Temperature Sensor w/25' RJ-11 cable

- (2) External Digital Sensor Ports (front, 1 open) for connection of external digital sensors

- (1) External Switch Sensor Channel (front) for connection of an external switch sensor

- (1) Light Tower Connection Port (back) for AVTECH Light Tower w/Audio or Relay Switch Sensor

- (1) Factory Reset Button

- (1) Ethernet Connection (RJ-45)

- (1) 10' Ethernet Cable (Red)

- (1) 5V Power Adapter (110/240V, RoHS, Lead Free, international versions for all countries)

- Built-in Power Over Ethernet (PoE, 802.3af)

- LED Sensor Alert Indicators

- Built-in Web Server Interface

- SNMP Trap & Query enabled

- Device ManageR Application Software (included at no charge)

- Printed Room Alert 4E/ER User's Guide & Reference Manual

- '1 Year Personal Subscription' to GoToMyDevices Cloud Service (included at no charge)

- Technical Support through active GoToMyDevices subscription

- '1 Year Hardware Monitor Replacement Guarantee'

- '90-Day Warranty & Replacement Guarantee' on AVTECH sensors

- '30 Day Satisfaction Guarantee' with no questions asked return policy

- AVTECH's many years of experience since 1988

Pricing


Prices & Delivery
List Price - Standard Model€395
List Price - Rack Mounted Model€425
List Price - Rack Mount Kit (If Purchased Separately)€35
